دستگاه صنعتی التراسونیک فاف مدل 8320

تولید و مونتاژ و استاندارد
کشور تولبد کننده : آلمان
ضمانت و خدمات بعد از فروش
شرکت ضمانت کننده : شرکت تهران دوخت ماشین
مدت ضمانت : 24 ماه
زمان ارسال و تحویل کالا
مبدا ارسال کالا : از تهران به سراسر کشور

مشخصات و ویژگی ها
توضیحات تکمیلی
نظرات کاربران
برچسب ها

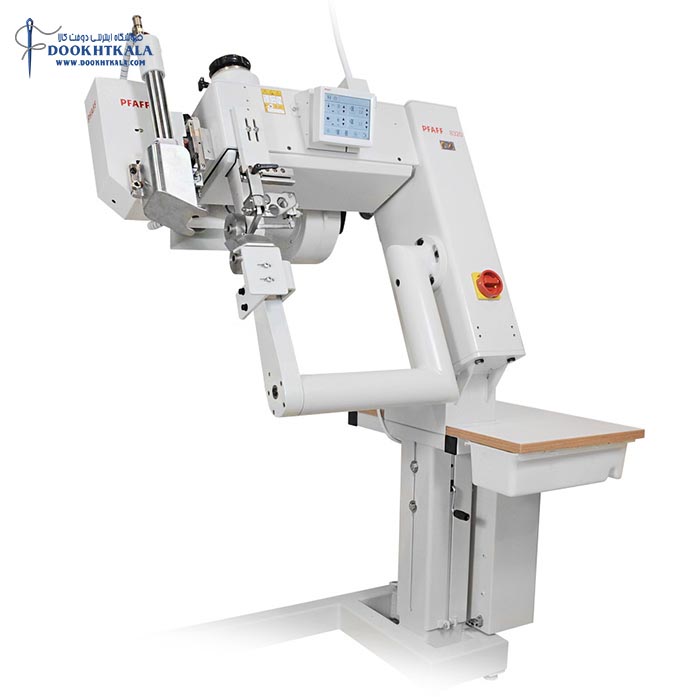

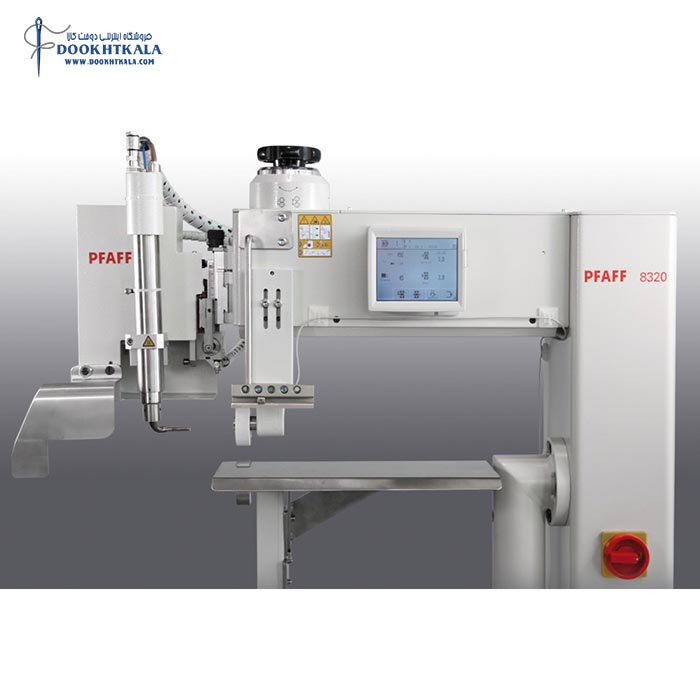

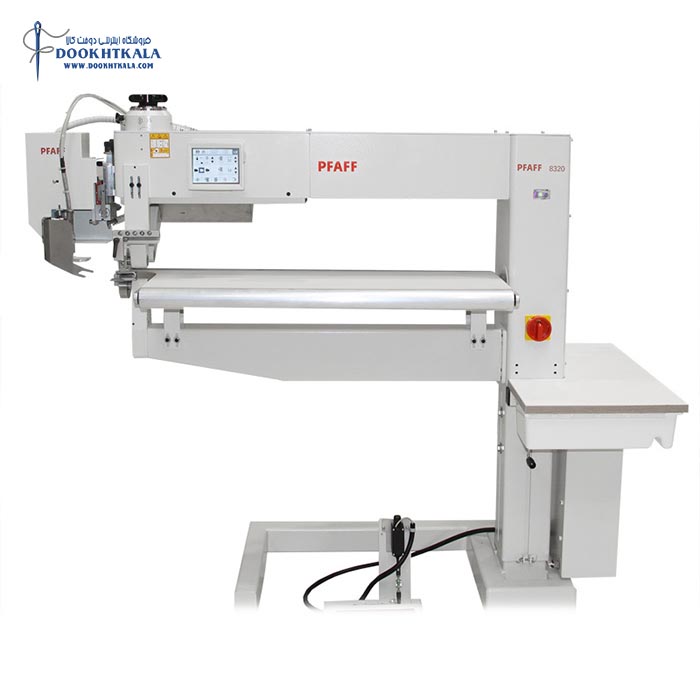

دستگاه صنعتی التراسونیک فاف مدل 8320

دستگاه دوخت التراسونیک عملیات دوخت را از طریق حرارت انجام می دهد. این دستگاه ها در زمینه تولید انواع ساک تبلیغاتی (اسپان باند) ، ماسک ، پوشاک بیمارستانی و انواع کاور کاربرد دارند

Features

Touch-control-panel P1 with integrated SD card reader and USB slot. The P1 guarantees an intuitive operation

Interchangeable swivel unit - easy exchange from hot air to hot wedge or vice versa
Differential transport possible during sealing
No buttons, no pressure gauges: One touch screen and 100% parameter control
All parameters are controlled electronically:
One integrated control board monitors the heat-sealing temperature, the air flow, the roller pressure and the two motors for the top and bottom roller
Proportional valves enable the dynamic adjustment of the air flow and roller pressure
Two precision-controlled motors permit an extremely accurate differential transport
2-axis swing in mechanism:
The nozzle or wedge can be very accurately adjusted without tools by using a compound slide rest
Hinged post: The bottom post holder can be turned over 180° as desired
Depending on the application it is possible to feed off the arm, as post- or feed on the arm
Adjustable stand height: With a crank the working height can be adjusted exactly to suit the application
Different wedge sizes + different nozzle sizes and shapes
Several operating levels protected by passwords: If desired, the operator can only select certain operating sequences
Selectable languages and units of measurement
Heat-up and cool-down cycles possible
Machine can be integrated in a complete production unit

Options

Tubing guide for filter tubes
Exhaust unit
Tape reel unit for taping operations
Double roller-arm with table
Hot-wedge or hot-air nozzle on the right-hand side
Puller (direct puller or as separate unit)

Specifications

Sealing temperature:
PFAFF 8320-010 (hot-wedge version): max. 500 °C
PFAFF 8320-020 (hot-air version): max. 720 °C
Sealing speed: max. 10 m/min (standard), option up to 30 m/min available
Width of hot wedges (mm): 7, 9, 12, 15, 20, 30, 40, 50
Width of nozzles: 10 - 50 mm (others available)
Power input:
PFAFF 8320-010 (hot-wedge version): approx. 1500 W
PFAFF 8320-020 (hot-air version): approx. 3500 W
Heating capacity:
PFAFF 8320-010 (hot-wedge version): approx. 1000 W
PFAFF 8320-020 (hot-air version): approx. 3300 W
Connection voltage: single-phase a.c. 230 V, 50/60 Hz

توضیحات تکمیلی دستگاه صنعتی التراسونیک فاف مدل 8320

With the PFAFF 8320 sealing sequences can be programmed, i.e. depending on the cutting and the fabric any parameters can be entered for any given segment and reproduced with 100% accuracy.
An absolute innovation from PFAFF!
