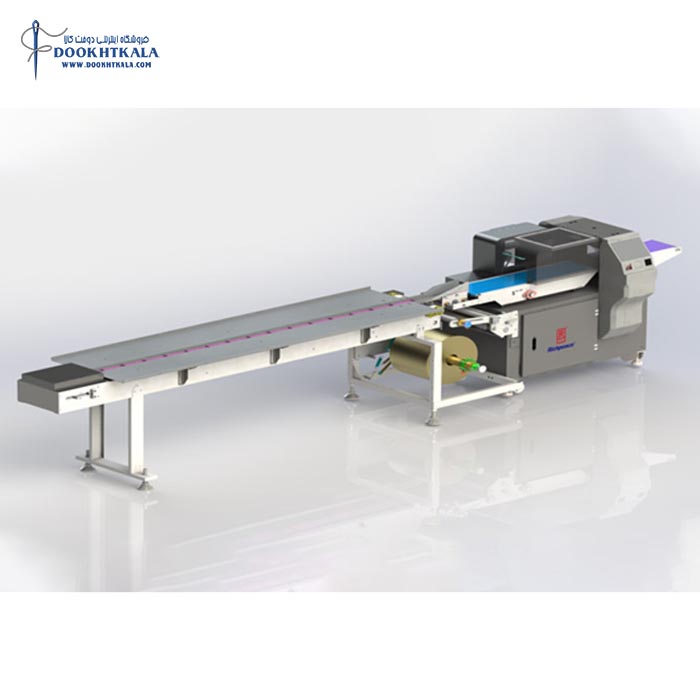

دستگاه فول اتوماتیک بسته بندی ماسک پزشکی ریچ پیس مدل RPAP-FM-F-2

دستگاه فول اتوماتیک بسته بندی ماسک پزشکی ریچ پیس مدل RPAP-FM-F-2

  • مشخصات فنی
  • تعداد تولید (در دقیقه): 30 - 160 عدد
  • ابعاد: 4230mm×750mm×1075mm
  • ولتاژ: 220 ولتاژ
  • توان مصرفی: 3.1 kw
  • تولید و مونتاژ و استاندارد
  • کشور تولبد کننده : چین
  • ضمانت و خدمات بعد از فروش
  • شرکت ضمانت کننده : شرکت تهران دوخت ماشین

دستگاه فول اتوماتیک بسته بندی ماسک پزشکی ریچ پیس مدل RPAP-FM-F-2

Product Introduction

1. Three-servo motor control system, can automatically set the bag length (within 400mm) to achieve specified length of the auto-packing. Including empty packing detection, through the checking of product’ s origin, auto matically identify the material position, machine will be stopped when the feeding material is not there, and started when there is product material coming in.

2. Human-machine interactive interface, convenient and fast to set parameters, can store products parameters for various products specification, allow to choose parameters according to product spec.

3. Self-diagnostic function, clear fault and reset in one-step.

4. High-sensitivity photoelectric sensor mark tracking, digitally input seal and cut position, making the position more accurate.

5. Independent PID control of temperature, suitable for various packing material.

6. Positioning stop function, material not sticking on the cutter, no wastage of packing film.

7. Simple and easy of the transmission system, reliable and preventative maintenance easily.

8. All controls are performing by program, convenient on features tuning and technologies upgrade, fulfill intelligent operation.

Product Parameters

Model RPAP-FM-F-2-100x250-HM-BSP-CRF-P-1P220 ( II )
Length of Packaging Bags 60mm-500mm
Width of Packaging Bags 35mm-160mm
Product Height 5mm-60mm
Film length 90mm-400mm
Film roll diameter Max. 350mm
Package speed 35-160 bags/min (support 1-20 pcs/bag)
Power supply 220V, 50/60Hz, 3.1kW
Machine dimension 4230mm×750mm×1075mm
Machine weight ≈350kg
