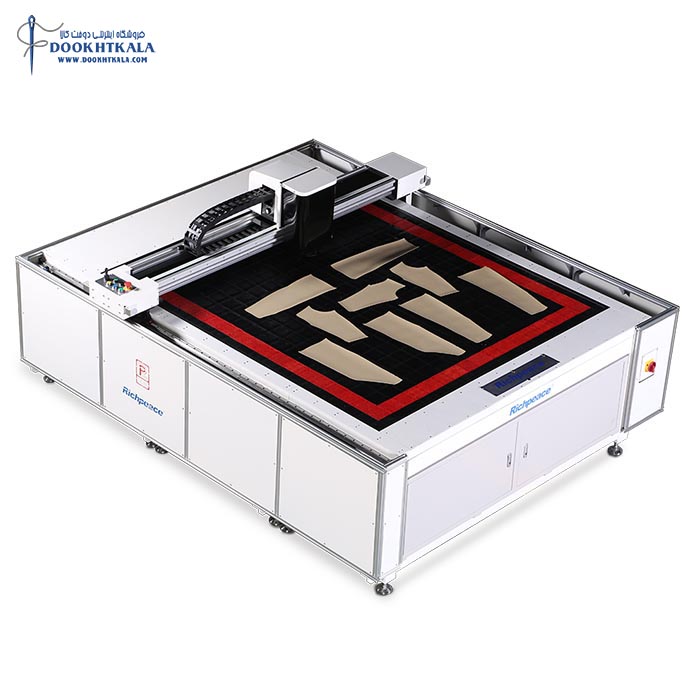

دستگاه برش اتوماتیک ریچ پیس مدل RPAC-NM-MC1-1
دستگاه برش اتوماتیک ریچ پیس مدل RPAC-NM-MC1-1
- تولید و مونتاژ و استاندارد
- کشور تولبد کننده : چین
- ضمانت و خدمات بعد از فروش
- شرکت ضمانت کننده : شرکت تهران دوخت ماشین
- مدت ضمانت : 12 ماه
- زمان ارسال و تحویل کالا
- مبدا ارسال کالا : از تهران به سراسر کشور
دستگاه برش اتوماتیک ریچ پیس مدل RPAC-NM-MC1-1
Product Introduction
1. Independent research and development electronic safe and reliable.
2. Cutting blade is made of diamond hardness stainlesssteel,equipped with automatic sharpening device.
3. Cutting blade change cutting speed automatically,automatic side cut compensation,ensure quality of final markers.
4. The automatic sharpening device performs blade sharpening automatically.
5. The cutting head with cutting blade is specially designed, made by extraordinary stainless steel.
6. Full protection shield system,can be,manually emergenly stoppedanytime.
7. Segment adsorption and cutting,realize tailoring,pick up materials, materials with simultaneously,no cutting blind angle,there will be no cutting phenomenon.
8. Meet the requirements of personalized clothing production, the compatibility with any clothing CAD software,high precision, long service life.
توضیحات تکمیلی دستگاه برش اتوماتیک ریچ پیس مدل RPAC-NM-MC1-1
Product Parameters
| Model | RPAC-NM-MC1-1-2000x1600-FB-LH-P-3P380 |
| Effective cutting area | 2×1.6m |
| Move speed of blade | ≤60m/min |
| Reciprocation frequency of blade | ≤4000 rpm |
| Power supply | AC380/50HZ |
| Gas supply | 0.6Mpa |
| Draught fan | 5KW |
| Driver | Servo Motor |
| Control method | Laptop on Top, locomotorium on under, four-axis linkage |
| Cutting platform | Sectional type platform of bristle block |
| Sharpening method | One side sharpen blade |
| Blade head design | Special design prevent leaking oil |
| Clean system | Auto clean with stainless steel filter element |
| Cutting feature | Without cutting dead angle |
